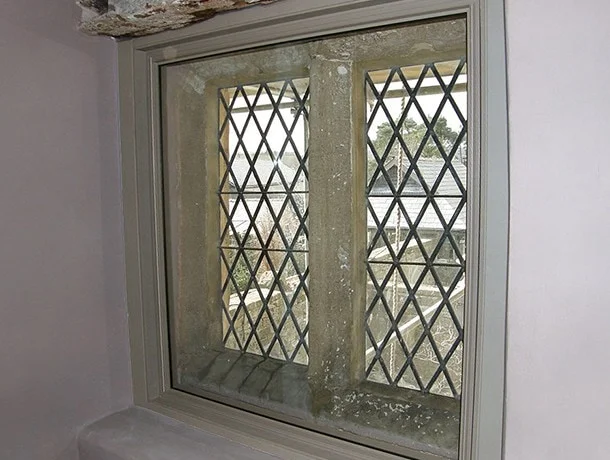

Clearview Lift out secondary glazing.
Where economy is paramount, look at Clearview’s Lift out secondary glazing, in the Classic range. Lift out glazing units are the most cost-effective type of secondary glazing. Ideal for situations where limited access to the primary window is needed (for example, a non-opening decorative window, or a window installed purely to provide light). As the name suggests, the units lift out of a secured channel, using an Easy Lift Fin (see data sheet). For practical purposes, we advise that sash size is considered, as the weight of the glass must be manageable, and specified correctly to avoid distortion. Each sash is manufactured with a double brush pile seal, enhancing thermal and acoustic insulation.
Clearview’s Lift Out panel units are available in standard and slim-line options. Standard units use an aluminium twin track profile, giving strong, secure fixing for larger panes of glass. Where possible, Clearview recommend keeping the glass pane size below 25 kgs in weight. For reference, 4mm glass = 10 kgs per sq m/ 6mm + 6.4mm glass = 15 kgs per sq m. The slimline unit’s section is single track, ideal for smaller sections, but not suitable for heavier weights of glass.
