How to Measure

To measure your windows before ordering secondary glazing or getting a FastQuote, you just need a tape measure.

Download Our Guide - How To Measure For Secondary Glazing

Our measuring guide will help you get the most accurate measurements and best results.

Our Size Guide shows the minimum and maximum sizes suggested for different window applications.

Measuring Guide Explainers

How To Measure Splayed Reveals and Bays

How To Measure Your Window For Hinge Units & Lift-Out Units

How To Measure Your Window For Horizontal & Vertical Sliders

Measuring Guide Templates

See the Measuring Support Templates below for help with:

Tolerance Deductions, Panels Splits, Angled Reveals, Bay Windows and Arches.

Ideal to print off and take directly to your to your window.

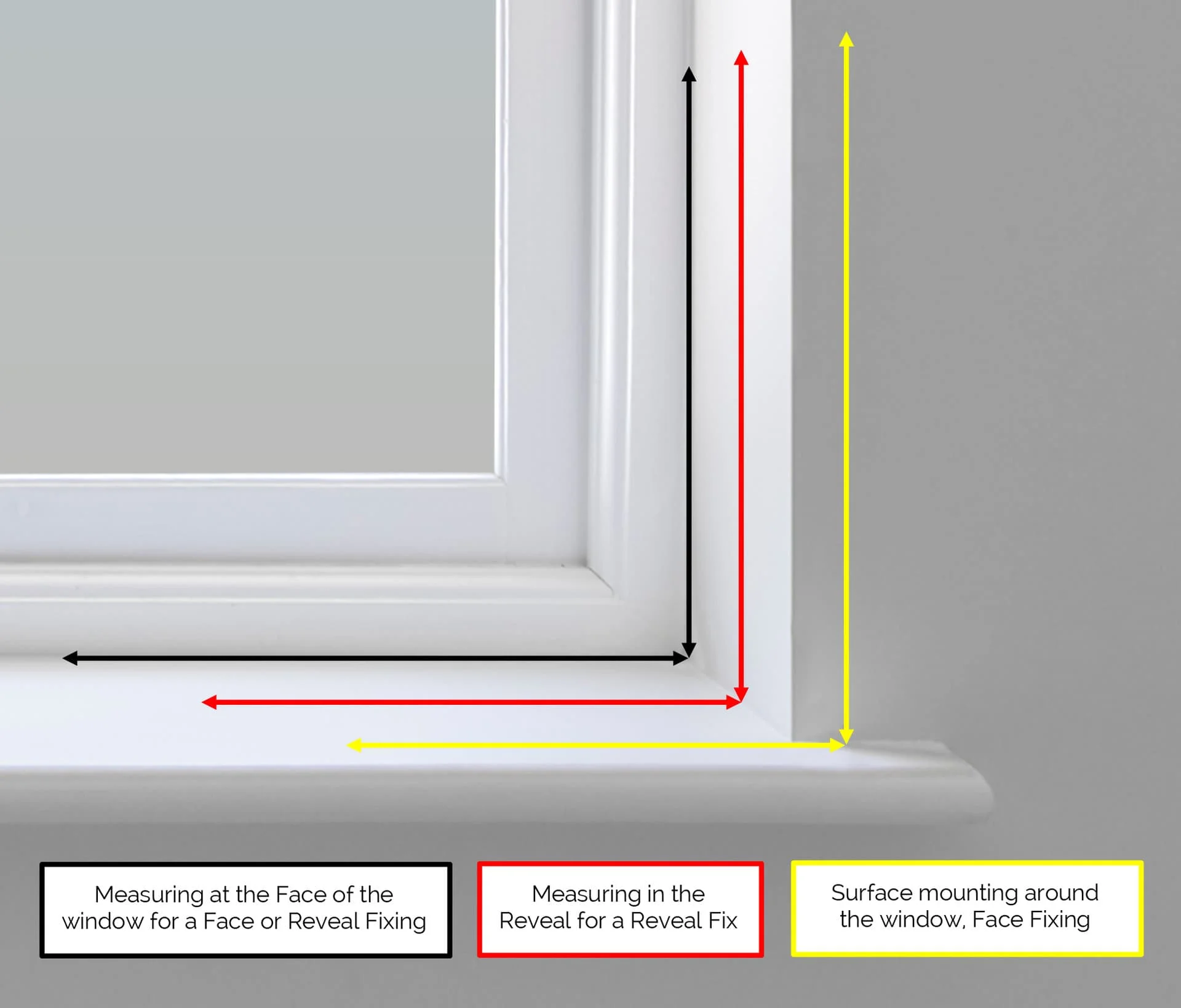

Fixing Options & Measuring: general interpretations

Face & Reveal Fixing is simply the direction the screw holes are placed, face fix: front to back, Reveal Fix through the sides.

  • Face Fixing: this is the default set option – Front to back fixing, the unit is fitted in the reveal screw fixed directly onto the face of the primary window frame – tolerance deduction are recommended to ensure the unit will comfortably fit into the reveal / aperture.
  • Surface Mounting: this is the same as face fixing – but the unit will be measured and screw fixed to the internal room wall around the reveal, therefore the unit will need to be bigger than the reveal – see product brochures for frame sizes. (this is a less common option, needed if there is no reveal or there are obstacles in the reveal, opening inward windows etc)
  • Reveal Fixing: this is where the unit is placed in the reveal, side fixing, into the left right, top & sill of the reveal. This is applied to increase the distance from the primary window to the back of the unit, increasing soundproofing performance of accommodating protruding handles or catches etc, or if there is insufficient frame available to face fix into.  Measurements should be taken where the unit will be placed in the reveal and the same tolerance deduction process applied to ensure fit. . You can select a self drill option through the track as the most cost effect or select an XL (Extra Long) sub-frame and this will be pre-drilled for you. The options can be applied in the modify area of the FastQuote.



All details are all based from a position of inside, looking out of the window. When measuring your window it is important to apply Tolerance Deductions to the sizes taken, this simplifies the installation and improves the final appearance. The tolerance deductions accommodate out-of-square/distortions in the primary window frame (it may be necessary to adapt this tolerance if the window frame is extremely distorted). DO NOT WORRY ABOUT THE GAP between frame and wall, this is fully sealed by the trimming process and will not notably affect performance, you can choose to fill the gap prior to trimming with a flexible filler or expanding foam, if reveal fixing back-trimming . Taking a lesser deduction is OK if you are confident about measuring and your primary window construction. However, additional work and adjustments to the secondary frame may be required, and remember there is a manufacturing drift of +/- 3mm from the confirmed unit build sizes. It’s better to take width and height measurements at several points, checking for variances. The smallest / narrowest measurements should be used. It’s better to have the unit made slightly too small, than too large, gaps are easier to hide and covered by edging trim, and a few mm of inaccuracy will not be noticed and will not affect performance. If the unit is wedged in too tightly, it can distort the frame, reducing efficiency and operation. Also, a gap around the unit allows for seasonal expansion and contraction, in addition, due to the wide variation in window design and property age some onsite adjustments may be unavoidable.

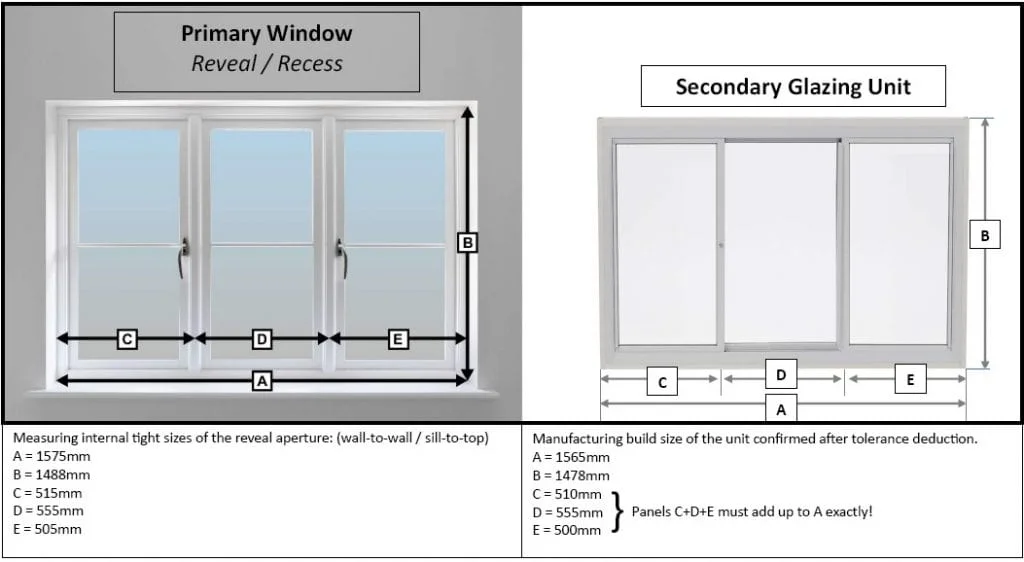

Tolerance: reducing the total measured width and height by 10mm (giving 5mm clearance per side)  and reduce the first and last panels by 5mm. E.g. measuring a window 1195mm wide x 1245mm high would require a manufacture of 1185mm x 1235mm, the measured panels must add up to the build size width or height which ever appropriate, (10mm off the total, 5mm of the first and last panel). Measuring details (internally facing the window) should be submitted by width x height x pane separation sizes. Centre points of horizontal sliders (sliding side to side) are taken from the left side to centre of mullion. Sash/vertical sliding windows (Sliding up/ down) the mid-rail measurement is always taken from the top to centre of mid rail. NB If the window panes are not equal in size (offset) still follow these instructions. Take your time, the measurements are important – we use them as our manufacturing instructions.

Take your measurements for secondary glazing when the primary window is in a finished state. Any painting, plastering, dry-lining, bulk heads or boxing out need to be complete before measuring, make any required adjustments to accommodate any protruding items, e.g. handles, either by unit position or using an XL sub-frame. Need more help? Email with information about the primary window.

Tolerance Measuring - Correct
Tolerance Measuring - Wrong

Please remember!

  1. Measure left to right
  2. Measure from inside looking out
  3. TOLERANCE: The widest part of the secondary glazing frame must fit inside the narrowest point of the area it is being fitted, better too small than too big! (There is a manufacturing drift of +/-3mm from the make sizes confirmed), gaps are hidden by the trim for a clean neat finish. If surface mounting the unit around an aperture, visit our Product Guides page select the unit of interest and add the frame size to the internal aperture width & height, adjusting as required if the unit is sat on a window sill.
  4. Do not worry about the tolerance adjusted gap, this will be fully covered and sealed by the perimeter trimming process and does not affect performance.
  5. When measuring a split in the height of a unit, measure from the top down
  6. Horizontal sliders slider left-right, vertical sliders slider up-down
  7. ALWAYS give your measurements in mm!

Bay Windows:

see Build-a-Bay Guide [click here]

If treating a Angled or Square Bay the measuring format is exactly the same, just the corners being either 90degrees or greater than e.g. 135 degrees. if the bay can be constructed using 3 units, Sides and Front, just measure the 3 sections and in the FastQuote enter 3 units with the 2 angles as required – see templates above . If you want to construct the bay using using 4 or more units, treat each unit individually, and when adding the angles, just connect the side to its adjacent front unit, an example would be:

a. Bay left Side

b. Bay Left Front

c. Bay Right Front

d. Bay Right Side

Connect a+b with angle required – 2 unit bay

Connect c+b with angle required – 2 unit bay

The total structure will then from the bay required

For a Curved multipart Bay each section should be treated as an individual single unit.

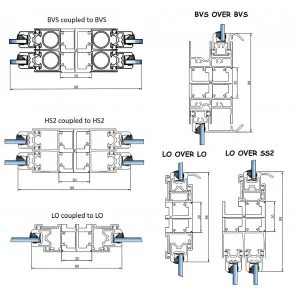

Coupling Units Together

If your windows are too large for a single sized unit, you can couple units together either side-by-side or stacked one-on-the other. This can be done timber-to-timber or using a coupling bar, this replaces the sub-frame where the units connect. These can be added in the modify area of the FastQuote – “Add Extras.”

If you are stacking horizontal sliders which are wider than 1200mm wide, you will need to apply 70 x 16mm XL sub-frames and box support bars for each interlocking panel section, to support the weight and prevent sagging.

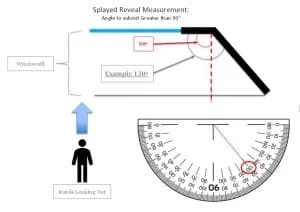

Splayed Reveals – angled sides.

Where the sill widens towards the room when looking out. See the Measuring Guide for more details.
